## Imperfect Action is Better Than Perfect Inaction: What Harry Truman Can Teach Us About Loss Functions (with an intro to ggplot)

One of the heuristics we use at Intelex to guide decision making is former US President Truman’s advice that “imperfect action is better than perfect inaction.” What it means is — *don’t wait too long to take action*, because you don’t want to miss opportunities. Good advice, right?

When I share this with colleagues, I often hear a response like: “that’s dangerous!” To which my answer is “well sure, *sometimes*, but it can be really valuable depending on how you apply it!” The trick is: knowing *how* and *when*.

Here’s how it can be dangerous. For example, statistical process control (SPC) exists to keep us from tampering with processes — from taking imperfect action based on random variation, which will not only get us nowhere, but can exacerbate the problem we were trying to solve. **The secret is to apply Truman’s heuristic based on an understanding of ****exactly how imperfect is OK with your organization, based on your risk appetite****.** And this is where loss functions can help.

Along the way, we’ll demonstrate how to do a few important things related to plotting with the ggplot package in R, gradually adding in new elements to the plot so you can see how it’s layered, including:

- Plot a function based on its equation
- Add text annotations to specific locations on a ggplot
- Draw horizontal and vertical lines on a ggplot
- Draw arrows on a ggplot
- Add extra dots to a ggplot
- Eliminate axis text and axis tick marks

## What is a Loss Function?

A **loss function** quantifies how unhappy you’ll be based on the accuracy or effectiveness of a prediction or decision. In the simplest case, you control one variable (x) which leads to some cost or loss (y). For the case we’ll examine in this post, the variables are:

- How much time and effort you put in to scoping and characterizing the problem (x);
*we assume that time+effort invested leads to real understanding* - How much it will cost you (y); can be expressed in terms of direct costs (e.g. capex + opex) as well as opportunity costs or intangible costs (e.g. damage to reputation)

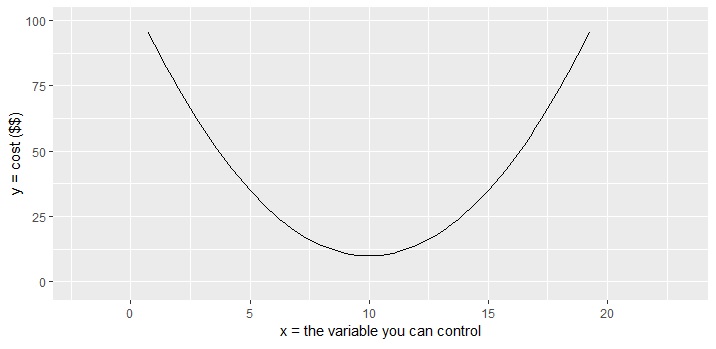

Here is an example of what this might look like, if you have a situation where overestimating (putting in too much x) OR underestimating (putting in too little x) are both equally bad. In this case, x=10 is the best (least costly) decision or prediction:

```
# describe the equation we want to plot
parabola <- function(x) ((x-10)^2)+10
# initialize ggplot with a dummy dataset
library(ggplot)
p <- ggplot(data = data.frame(x=0), mapping = aes(x=x))
p + stat_function(fun=parabola) + xlim(-2,23) + ylim(-2,100) +
xlab("x = the variable you can control") +
ylab("y = cost of loss ($$)")
```

In regression (and other techniques where you’re trying to build a model to predict a quantitative dependent variable), mean square error is a squared loss function that helps you quantify error. It captures two facts: the farther away you are from the correct answer the worse the error is — and both overestimating and underestimating is bad (which is why you square the values). Across this and related techniques, the loss function captures these characteristics:

**Not all loss functions have that general shape.** For classification, for example, the 0-1 loss function tells the story that if you get a classification wrong (x < 0) you incur *all* the penalty or loss (y=1), whereas if you get it right (x > 0) there is *no *penalty or loss (y=0):

```
# set up data frame of red points
d.step <- data.frame(x=c(-3,0,0,3), y=c(1,1,0,0))
# note that the loss function really extends to x=-Inf and x=+Inf
ggplot(d.step) + geom_step(mapping=aes(x=x, y=y), direction="hv") +
geom_point(mapping=aes(x=x, y=y), color="red") +
xlab("y* f(x)") + ylab("Loss (Cost)") +
ggtitle("0-1 Loss Function for Classification")
```

## Use the Loss Function to Make Strategic Decisions

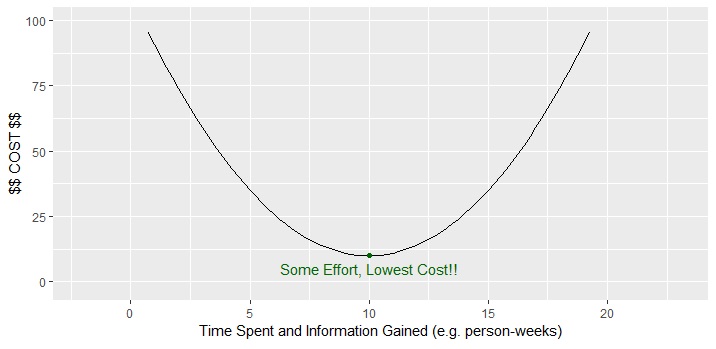

So let’s get back to Truman’s advice. Ideally, we want to choose the x (the amount of time and effort to invest into project planning) that results in the *lowest possible* cost or loss. That’s the green point at the nadir of the parabola:

```
p + stat_function(fun=parabola) + xlim(-2,23) + ylim(-2,100) +
xlab("Time Spent and Information Gained (e.g. person-weeks)") + ylab("$$ COST $$") +
annotate(geom="text", x=10, y=5, label="Some Effort, Lowest Cost!!", color="darkgreen") +
geom_point(aes(x=10, y=10), colour="darkgreen")
```

Costs get *higher* as we move up the x-axis:

```
p + stat_function(fun=parabola) + xlim(-2,23) + ylim(-2,100) +
xlab("Time Spent and Information Gained (e.g. person-weeks)") + ylab("$$ COST $$") +
annotate(geom="text", x=10, y=5, label="Some Effort, Lowest Cost!!", color="darkgreen") +
geom_point(aes(x=10, y=10), colour="darkgreen") +
annotate(geom="text", x=0, y=100, label="$$$$$", color="green") +
annotate(geom="text", x=0, y=75, label="$$$$", color="green") +
annotate(geom="text", x=0, y=50, label="$$$", color="green") +
annotate(geom="text", x=0, y=25, label="$$", color="green") +
annotate(geom="text", x=0, y=0, label="$ 0", color="green")
```

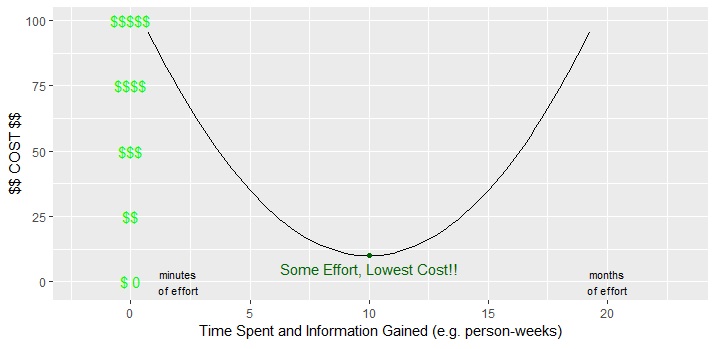

And time+effort grows as we move along the x-axis (we might spend minutes on a problem at the left of the plot, or weeks to years by the time we get to the right hand side):

```
p + stat_function(fun=parabola) + xlim(-2,23) + ylim(-2,100) +
xlab("Time Spent and Information Gained (e.g. person-weeks)") + ylab("$$ COST $$") +
annotate(geom="text", x=10, y=5, label="Some Effort, Lowest Cost!!", color="darkgreen") +
geom_point(aes(x=10, y=10), colour="darkgreen") +
annotate(geom="text", x=0, y=100, label="$$$$$", color="green") +
annotate(geom="text", x=0, y=75, label="$$$$", color="green") +
annotate(geom="text", x=0, y=50, label="$$$", color="green") +
annotate(geom="text", x=0, y=25, label="$$", color="green") +
annotate(geom="text", x=0, y=0, label="$ 0", color="green") +
annotate(geom="text", x=2, y=0, label="minutes\nof effort", size=3) +
annotate(geom="text", x=20, y=0, label="months\nof effort", size=3)
```

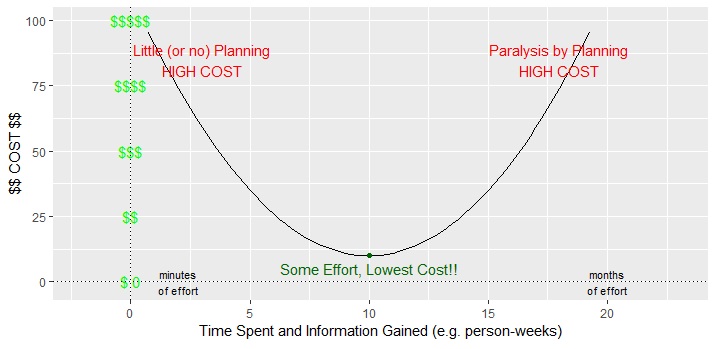

## Planning too Little = Planning too Much = Costly

What this *means *is — if we don’t plan, or we plan just a little bit, we incur high costs. We might make the wrong decision! Or miss critical opportunities! But if we *plan too much* — we’re going to spend too much time, money, and/or effort compared to the benefit of the solution we provide.

```
p + stat_function(fun=parabola) + xlim(-2,23) + ylim(-2,100) +
xlab("Time Spent and Information Gained (e.g. person-weeks)") + ylab("$$ COST $$") +
annotate(geom="text", x=10, y=5, label="Some Effort, Lowest Cost!!", color="darkgreen") +
geom_point(aes(x=10, y=10), colour="darkgreen") +
annotate(geom="text", x=0, y=100, label="$$$$$", color="green") +
annotate(geom="text", x=0, y=75, label="$$$$", color="green") +
annotate(geom="text", x=0, y=50, label="$$$", color="green") +
annotate(geom="text", x=0, y=25, label="$$", color="green") +
annotate(geom="text", x=0, y=0, label="$ 0", color="green") +
annotate(geom="text", x=2, y=0, label="minutes\nof effort", size=3) +
annotate(geom="text", x=20, y=0, label="months\nof effort", size=3) +
annotate(geom="text",x=3, y=85, label="Little (or no) Planning\nHIGH COST", color="red") +
annotate(geom="text", x=18, y=85, label="Paralysis by Planning\nHIGH COST", color="red") +
geom_vline(xintercept=0, linetype="dotted") + geom_hline(yintercept=0, linetype="dotted")
```

The trick is to FIND THAT CRITICAL LEVEL OF TIME and EFFORT invested to gain information and understanding about your problem… and then if you’re going to err, make sure you *err towards the left — *if you’re going to make a mistake, make the mistake that costs less and takes less time to make:

```
arrow.x <- c(10, 10, 10, 10)
arrow.y <- c(35, 50, 65, 80)
arrow.x.end <- c(6, 6, 6, 6)
arrow.y.end <- arrow.y
d <- data.frame(arrow.x, arrow.y, arrow.x.end, arrow.y.end)
p + stat_function(fun=parabola) + xlim(-2,23) + ylim(-2,100) +
xlab("Time Spent and Information Gained (e.g. person-weeks)") + ylab("$$ COST $$") +
annotate(geom="text", x=10, y=5, label="Some Effort, Lowest Cost!!", color="darkgreen") +
geom_point(aes(x=10, y=10), colour="darkgreen") +
annotate(geom="text", x=0, y=100, label="$$$$$", color="green") +
annotate(geom="text", x=0, y=75, label="$$$$", color="green") +
annotate(geom="text", x=0, y=50, label="$$$", color="green") +
annotate(geom="text", x=0, y=25, label="$$", color="green") +
annotate(geom="text", x=0, y=0, label="$ 0", color="green") +
annotate(geom="text", x=2, y=0, label="minutes\nof effort", size=3) +
annotate(geom="text", x=20, y=0, label="months\nof effort", size=3) +
annotate(geom="text",x=3, y=85, label="Little (or no) Planning\nHIGH COST", color="red") +
annotate(geom="text", x=18, y=85, label="Paralysis by Planning\nHIGH COST", color="red") +
geom_vline(xintercept=0, linetype="dotted") +
geom_hline(yintercept=0, linetype="dotted") +
geom_vline(xintercept=10) +
geom_segment(data=d, mapping=aes(x=arrow.x, y=arrow.y, xend=arrow.x.end, yend=arrow.y.end),
arrow=arrow(), color="blue", size=2) +
annotate(geom="text", x=8, y=95, size=2.3, color="blue",
label="we prefer to be\non this side of the\nloss function")
```

## Moral of the Story

The moral of the story is… **imperfect action can be expensive, but perfect action is ALWAYS expensive**. Spend less to make mistakes and learn from them, if you can! This is one of the value drivers for agile methodologies… agile practices can help improve communication and coordination so that the loss function is minimized.

```
## FULL CODE FOR THE COMPLETELY ANNOTATED CHART ##
# If you change the equation for the parabola, annotations may shift and be in the wrong place.
parabola <- function(x) ((x-10)^2)+10
my.title <- expression(paste("Imperfect Action Can Be Expensive. But Perfect Action is ", italic("Always"), " Expensive."))
arrow.x <- c(10, 10, 10, 10)
arrow.y <- c(35, 50, 65, 80)
arrow.x.end <- c(6, 6, 6, 6)
arrow.y.end <- arrow.y
d <- data.frame(arrow.x, arrow.y, arrow.x.end, arrow.y.end)
p + stat_function(fun=parabola) + xlim(-2,23) + ylim(-2,100) +
xlab("Time Spent and Information Gained (e.g. person-weeks)") + ylab("$$ COST $$") +
annotate(geom="text", x=10, y=5, label="Some Effort, Lowest Cost!!", color="darkgreen") +
geom_point(aes(x=10, y=10), colour="darkgreen") +
annotate(geom="text", x=0, y=100, label="$$$$$", color="green") +
annotate(geom="text", x=0, y=75, label="$$$$", color="green") +
annotate(geom="text", x=0, y=50, label="$$$", color="green") +
annotate(geom="text", x=0, y=25, label="$$", color="green") +
annotate(geom="text", x=0, y=0, label="$ 0", color="green") +
annotate(geom="text", x=2, y=0, label="minutes\nof effort", size=3) +
annotate(geom="text", x=20, y=0, label="months\nof effort", size=3) +
annotate(geom="text",x=3, y=85, label="Little (or no) Planning\nHIGH COST", color="red") +
annotate(geom="text", x=18, y=85, label="Paralysis by Planning\nHIGH COST", color="red") +
geom_vline(xintercept=0, linetype="dotted") +
geom_hline(yintercept=0, linetype="dotted") +
geom_vline(xintercept=10) +
geom_segment(data=d, mapping=aes(x=arrow.x, y=arrow.y, xend=arrow.x.end, yend=arrow.y.end),
arrow=arrow(), color="blue", size=2) +
annotate(geom="text", x=8, y=95, size=2.3, color="blue",
label="we prefer to be\non this side of the\nloss function") +
ggtitle(my.title) +
theme(axis.text.x=element_blank(), axis.ticks.x=element_blank(),
axis.text.y=element_blank(), axis.ticks.y=element_blank())
```

Now sometimes you *need *to make this investment! (Think nuclear power plants, or constructing aircraft carriers or submarines.) Don’t get caught up in getting your planning investment perfectly optimized — but do be aware of the trade-offs, and go into the decision deliberately, based on the risk level (and regulatory nature) of your industry, and your company’s risk appetite.
